product presentation ：

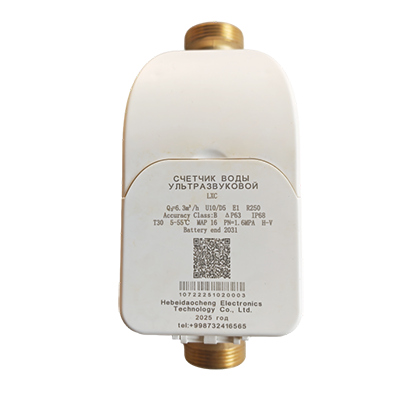

The ultrasonic water meter is an intelligent metering device integrating temperature sensors, flow sensors, and computational modules. Its calculation module accurately measures water flow by collecting temperature differences and acoustic wave signals through sensors, combined with time difference analysis principles. This equipment provides critical data support for various pipeline system applications, primarily used in residential water metering, centralized air conditioning system monitoring, and industrial equipment flow control.
service condition ：
Size: DN15-DN40
Battery lifespan: 10 years (DN15~DN40) / 6-8 years (DN50~DN500)
Case: Brass
Maximum working pressure: PN16.
R: R250,R400
Protection rating: IP68
Water temperature: T30/T90
Communication methods: (Lorawan), NB-IoT, Wi-Fi, GPRS, M-BUS, RS-485
Standard: ISO 4064.
functional characteristics ：
1. Supports communication protocols including LoRaWAN, NB-IoT, WLAN, M-BUS, and RS485.
2. Supports wireless automatic meter reading functionality.
3. Remote control valve
4. Measure cumulative flow rate
5. Local storage of water meter measurement data historical records
6. Water meter readings and remaining battery power will be automatically uploaded to the server platform and displayed periodically.
7. Low battery capacity alarm
8. Valve malfunction alarm
9. Display screen battery level, moisture balance status, and valve status
10. Built-in antenna (spring/soft antenna)
11. External antenna (for ground environment)
12. This button initiates the event escalation process.
