product presentation ：

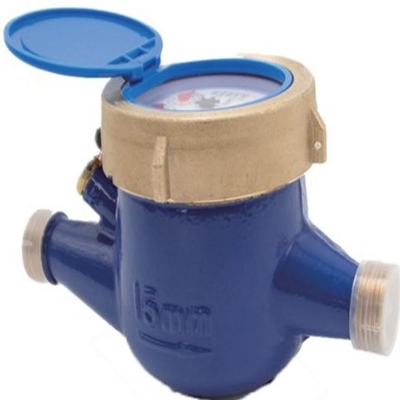

The LXSG-15-50 multi-nozzle water meter is designed for measuring total flow rate of tap water in closed pipelines. This instrument offers dry or wet-type configurations, with meter bodies available in various materials including stainless steel, brass, cast iron, and plastics. It supports nominal diameters ranging from DN15 to DN50 and provides OEM customization services.
main features
The proven multi-nozzle flowmeter design exhibits resistance to magnetism and icing
Vacuum sealing counter, maintained clean for long-term use. Accuracy: Complies with ISO 4064 Standard Class B requirements.
R8O/R100/R160 (R=Q3/Q1) (Optional) Installation method: Horizontal use/Vertical use
Maximum working pressure: PN16/PN10 (optional)
Pressure loss: ≤0.063 MPa
Water temperature: T30, T50, T90 (optional)
Material: Brass/Iron/Stainless Steel/Plastic/Nylon (optional)
