product presentation

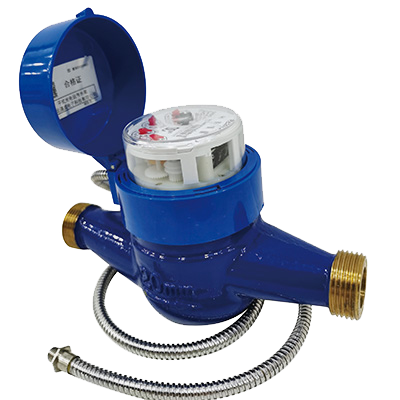

This product employs a mechanical water meter (brass casing/plastic casing) as the primary metering device, equipped with electronic remote transmission equipment.
Its measurement performance complies with the requirements of the national "Regulations on Metering Management for Drinking Water Cold Water Meters" and the industry standard for "Electronic Remote Meter Reading Water Meters" established by the Ministry of Construction.
service condition ：
Maximum working pressure: PN16 pressure loss; ≤0.063 MPa
Water temperature: T30, T50
Standard Number: 1504064. Class C
R: R160 (R=Q3/Q1) (Optional)
Installation method: Horizontal, Vertical, or Inclined
Connection method: The BSP threaded body can be made of brass, stainless steel with primer coating, or ABS material.
Adopting a volumetric rotary piston structure for enhanced measurement accuracy and improved sensitivity.
Multi-angle installation across wide flow range
You can add remote transmission devices as needed
characteristic ：
1. Without a worm gear transmission mechanism, the impeller directly drives the impeller, featuring high transmission efficiency and low starting flow rate.
2. Wide applicability, suitable for scenarios with significant flow variations.
3. Full-flow detection with high measurement accuracy.
4. The dry magnetic drive structure ensures that the counter remains clean and clear.
5. The six-digit magnified display wheel shows readings with enhanced clarity.
6. The detachable hinge mechanism facilitates maintenance.
7. Internal adjustment mechanism to prevent unauthorized calibration of meters.
8. The built-in stainless steel filter screen effectively protects the measuring mechanism.
9. This high-wear-resistant bearing system (gemstone bearings for aviation instruments + high-wear-resistant carburized hard alloy shaft) ensures long-term stable and reliable operation of the product, while significantly enhancing its maximum flow performance.
10. Stainless steel fasteners and epoxy resin powder are used both inside and outside the housing to achieve optimal rust prevention and extend product service life.
An optional anti-pryout cover can be installed to prevent unauthorized disassembly of moving parts, damage or tampering with the measurement mechanism, thereby maximizing theft prevention capabilities.
