product presentation

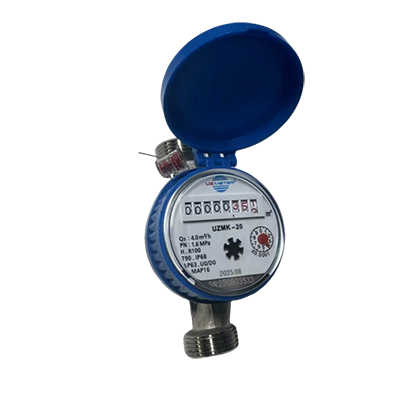

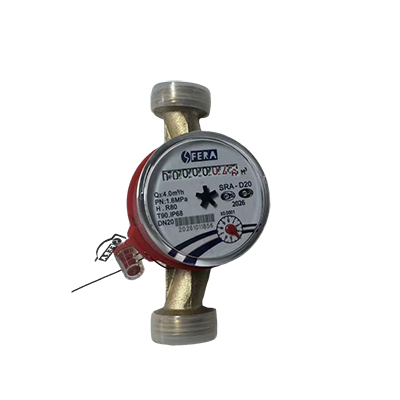

Dry-type water meters, with their metering mechanism isolated from the measured water volume, are unaffected by suspended impurities in the water. This design ensures both the normal operation of the metering system and clear readings.
It also differs from wet-type water meters, where temperature differences between the inner and outer walls of the glass tube can cause atomization or condensation, which may interfere with meter readings.
service condition
Size: DN15-DN200
Body; Brass (with valve)/Iron (without valve)
Type: Dry dialing/wet dialing (standard)
Maximum working pressure: PN16.
Protection rating: IP68
Protocol: Narrowband (LTE Cat. NB)
Frequency: B3 (1800), B5 (850), B8 (900)
Battery: Service life exceeding 6 years
Pressure loss: ≤0.063 MPa
Standard: ISO4064.
certificate ：MID
SIM card: Miniature SIM card (3FF type)
Working Mode: Level A
Software: B/S cloud service platform
Software payment: Free
Functions of Dry Single-Flow Mechanical Watch
(1) Ultra-long-distance communication
Communication distance between concentrator and water meter: 4-5 km in urban environments; 10-15 km in rural environments.
(2) Ultra-low power consumption and long service life
The average power consumption of the water meter module is ≤20μA.
The system features three operating modes: LOP1, LOP2, and LOP3, with response times of 12 seconds, 24 hours-12 seconds, and 24 hours, respectively. Based on the ER18505 battery operating at only 50% capacity, the service life of the instrument module is 6 years, 8 years, and 10 years.
(3) Anti-interference and high reliability
Frequency hopping technology can avoid interference on the same channel and improve transmission reliability.
(4) Strong management capabilities
The concentrator supports up to 5,000 LoRa water meters, with each meter storing 10 years of data.
(5) Easy installation with high meter reading success rate
Dual-meter reading mode: 24-hour active metering data reporting; real-time meter reading control valves (switching valves), etc.
