product presentation

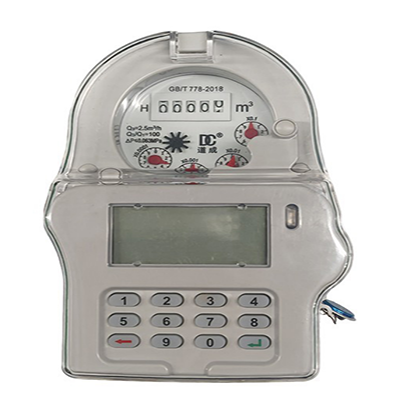

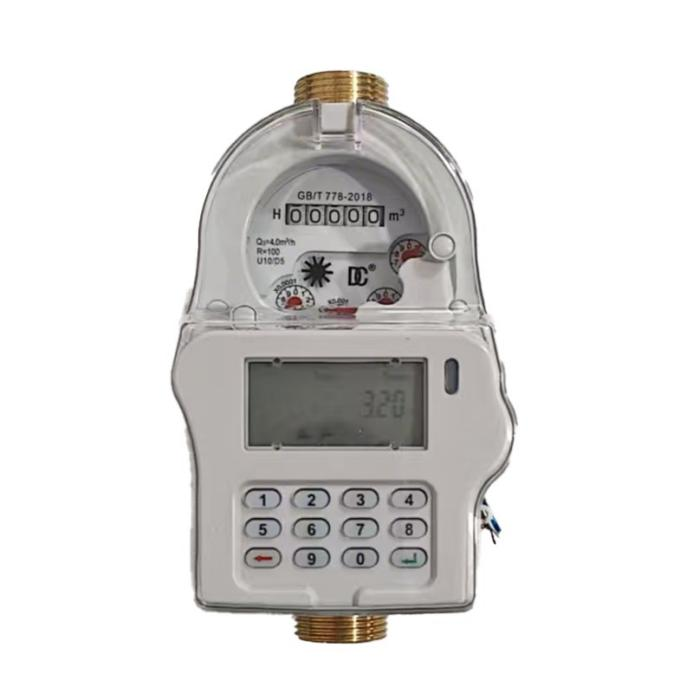

The STW36-A prepaid water meter complies with STS standards, featuring a push-button design and an automatic valve-controlled multi-nozzle system. This device supports direct recharge via Stronpay vending software and enables remote recharge functionality through communication with AMI systems using LORA radio frequency modules.

Maximum working pressure: 16 Bar

Maximum reading: 99999

Operating temperature: <50°C

Error: Q1sQ ≤ Q2 5%

Q2≤Q<Q4    2%

functional characteristics

(1) Logical form query

The water meter features an integrated keyboard that allows users to enter recharge tokens and check information via short codes.

(2) Mobile payment platform

The Stronpay vending system can be seamlessly integrated with local mobile payment platforms such as M-PESA, Alipay, MTN, and Airtel.

(3) Communication

The instrument can be integrated with AMI systems via LORA-RF or Bluetooth 4.0 technology as required.

(4) Tamper-proof function

When a magnetic field is detected and a cover plate opening event occurs, the meter will automatically close the valve.

(5) Tiered Tariff

Electric meters can be configured with tiered pricing by inputting corresponding tokens, allowing utility companies to establish tiered pricing schemes based on demand.

(6) Overdraft collection

Non-operating water usage (overdraft quota) may be charged on a daily or monthly basis.
